| PIH-301C | PIH-302C |
 |
 |
| PIH-306 | PIH-307 |
|
|
|
| PIH-301C | PIH-302C |
|
|
| PIH-306 | PIH-307 |
¡@
|
Model No. |

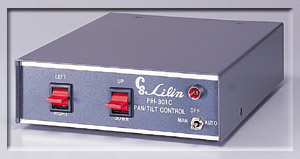

PIH-301C Outdoor Pan/Tilt Control |

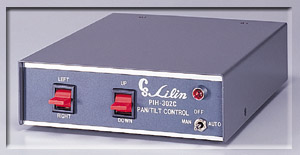

PIH-302C Indoor Pan/Tilt Control |

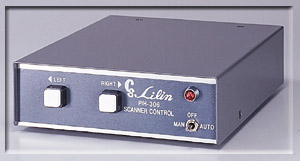

PIH-306
Scanner Control 1-CH |

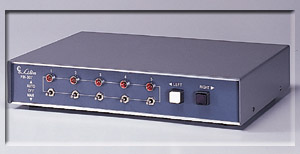

PIH-307
Scanner Control 5-CH |
| Control Buttons | Auto/Off/Manual,Left/Right,Up/Down~PIH-301C,PIH-302C Push button,Left/Right~PIH-306,PIH-307 | |||
| Input Voltage | AC 117V / AC 230V ,50 Hz / 60 Hz | |||
| Output Voltage | AC 24V / AC 117V / AC 230V,50 Hz / 60 Hz | |||
| Operating Temperature | -10¢XC~+60¢XC | |||
| Construction | Steel,black gray baked enamel finish | |||
| Dimension W¡ÑH¡ÑD | 152¡Ñ56¡Ñ188mm | 152¡Ñ56¡Ñ188mm | 152¡Ñ56¡Ñ188mm | 273¡Ñ60¡Ñ192.8mm |
| Weight | 1.25kg | 1.25kg | 1.25kg | 2.20kg |
¡@
