Designed for diverse surveillance needs

Designed for diverse surveillance needs, TeleEye DM860 Speed Dome Camera incorporates more superb features to provide accurate response to a variety of requests. Featuring the super high resolution in 520 TV lines, 352X zoom, 4 privacy zone masking, low light performance, pattern tour..., TeleEye DM860 can be used for unlimited application possibilities.

　

4 privacy zone masking

Maximum 352X zoom

Super high resolution 520 TV Lines

Minimum illumination 0.06 lux (F1.6)

80 programmable presets & 4 pattern tours

Fully compatible with TeleEye III+ video transmitters for remote surveillance

Remote surveillance and camera control through Internet or phone line

Mounting options: ceiling, wall, pendant, pole and corner

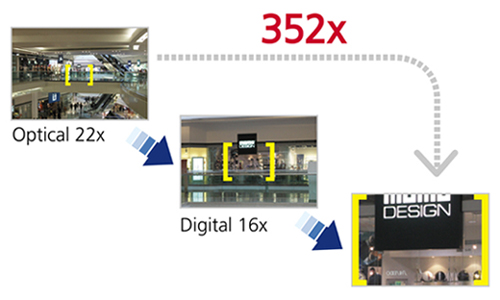

Powerful 352X Zoom

TeleEye DM860 is equipped with a reliable built-in 22X optical zoom lens that allows you to monitor a scene from any distance. Combined with a 16X digital zoom, its total zoom ratio can be boosted up to 352X for enabling powerful close-ups and capturing the subject details.


Advanced Privacy Zone Masking

TeleEye DM860 allows up to 4 masks of arbitrary size, to mask out any desired areas on screen. It can ensure consistent privacy no matter where the camera is pointing or zooming.

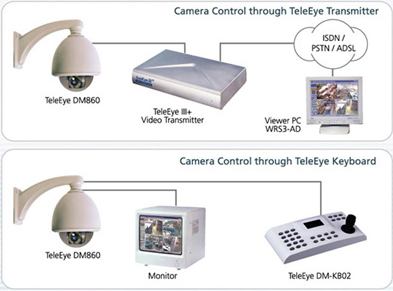

Typical Configurations

TeleEye DM860 Product Series

DM862
Ceiling mount
(indoor)

DM866
Wall mount
(indoor)

DM868
Wall mount
(outdoor)

TeleEye DM860 Speed Dome Camera Specifications

MODEL	DM862 Ceiling mount (indoor)	DM866 Wall mount (indoor)	DM868 Wall mount (outdoor)
CAMERA OPTICS
Scanning System	PAL (625 lines, 50 fields per second) NTSC (525 lines, 60 fields per second)
Image Sensor	1/4" interline transfer CCD
Resolution	520 TV lines
Minimum Illumination	0.06 Lux (F1.6) at 50 IRE, 32X sensitivity boost
Electronic Sensitivity Boost	On (2X - 32X) / Off
Video Output Level	1.0Vp-p (75W , composite)
Video S/N Ratio	³48dB
White Balance	Auto / Manual
Gain Control	Auto
Electronic Shutter	1/50 - 1/10,000 sec
Iris	Auto / Joystick auto / Manual
Back Light Compensation	On / Off, 15 levels
Lens	Aperture stop: F/1.6 - 3.8
	Focal length: f=3.6 - 79.2mm
	Viewing angle: 2.4º - 52º
Zoom	Optical: 22X / Electronic: 16X (Total: 352X)
MECHANICAL DESIGN
Privacy Masking	On / Off, 4 masks
Panning	Range: 360º continuous
	Manual speed: 0.5º - 140º/sec
	Preset speed: 300º/sec
Tilting	Range: 0º - 90º
	Manual speed: 0.5º - 140º/sec
	Preset speed: 300º/sec
Control	80 Presets, 4 Patrols, 4 Tours, 4 Auto scans, Home position, Manual
POWER / ENVIRONMENT
Weather Proof Standard	-	IP44	IP66
Fan	-	-	Continuous
Heater	-	-	Auto Start
Operating Temperature	0ºC - 40ºC		-30ºC - 50ºC
Humidity	<90%
Power Source	AC 24V, 10W (max)		AC 24V, 50W (max)
Net Weight (kg)	2.6	4.3	4.8
